Kestrel DROP D3FW Fire Weather Monitor

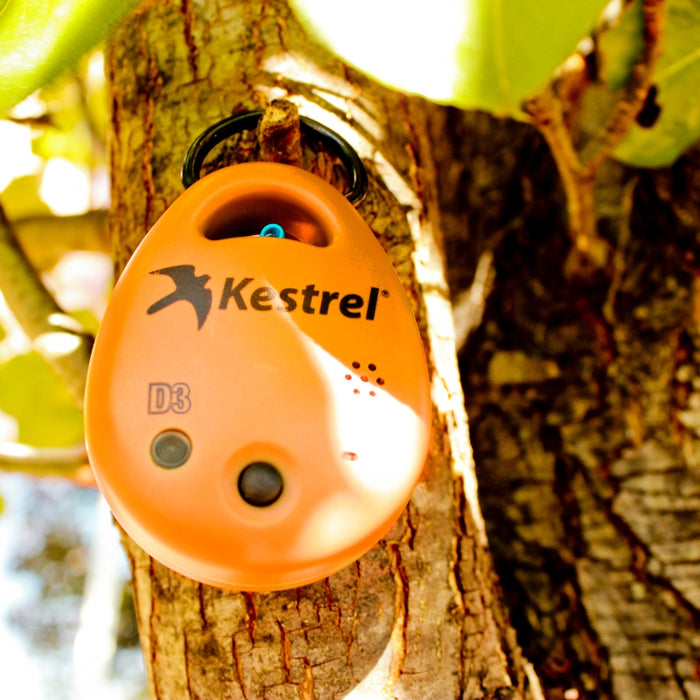

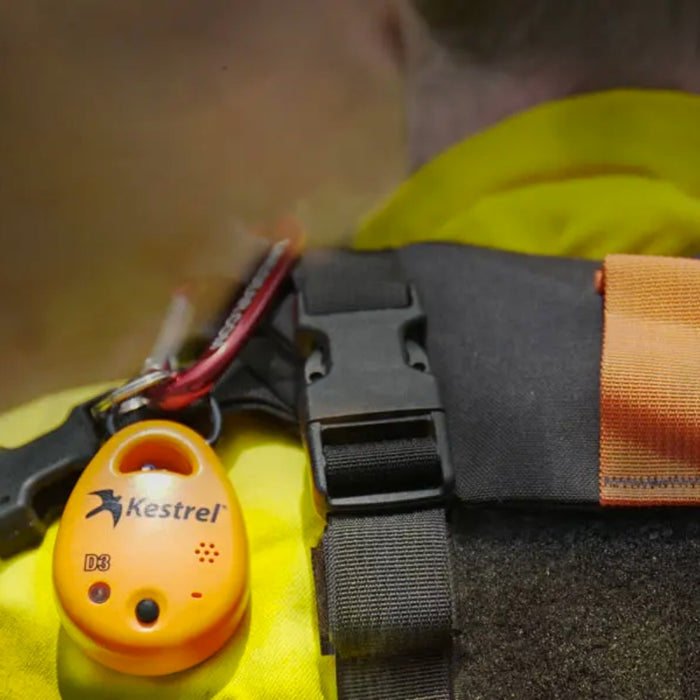

Understanding the environmental conditions surrounding a fire is critical. The Kestrel Fire Weather DROP can be deployed in seconds to begin capturing data from the start of the fire. DROPs are so small they can easily be clipped to a pack or belt loop, and so affordable they can be placed in multiple locations to provide unmanned monitoring. The DROP is powered by LiNK wireless data connectivity and the LiNK iOS and Android App – allowing for remote view of DROP readings as well as hands-free automatic data upload for review whenever the opportunity presents.

Kestrel DROP D3FW: Fire Weather Data Logger

Temperature
Relative Humidity
Heat Stress Index
Dew Point Temperature
Density altitude
Station pressure
Wet Bulb Temperature

(All data only viewable from the App)

RH (Relative Humidity): See Chart for more detail

Accuracy: +/- 2%RH
Sensors: 10 to 90% 25°C non-condensing
Calibration Drift: Typically less than +/- 0.25% per year!

DURABILITY:

Built to Kestrel’s brand specific rugged durability standard, the Kestrel DROPs are waterproof (IP67 standard) and drop-tested to MIL-STD-810G. Users are also able to set threshold alarms where an in-app pop-up will notify a user in range that certain measurement criteria have been met.

FEATURES:

View, chart, record and monitor your environmental conditions
Real time, Wireless, Graphing functionality

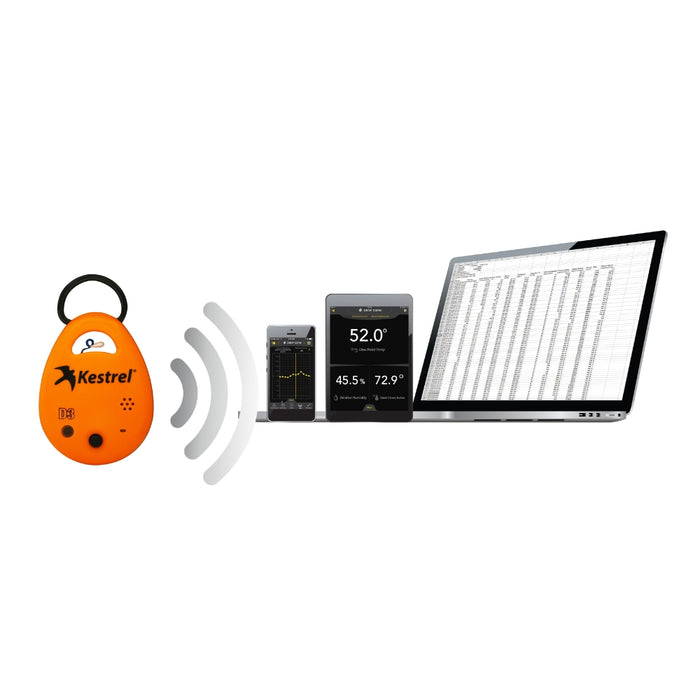

Access real time or chart the data via Bluetooth Low Energy (BLE) on your smart device
Log options: 2s, 5s, 10s, 20s, 30s, 1min, 2min, 5min, 10min, 20min, 30min, 1hr, 2hr, 6hr, 12hr
Range of 100 feet for iPhone connection
Download the Kestrel Connect App directly from the iTunes App store or Google Play.
Share real-time / logged data with Kestrel Connect app via email, text, and social media.
Battery life of 6 months - 1 year depending on user settings and logging
Rugged
Accurate
Waterproof / Floats
The Humidity does NOT need to be calibrated over time as with the Kestrel Wind Meters.

COMPARE DROP FEATURES

iOS and Android Requirements:

iOS: iOS 6 installed iPhone 4s, iPad 3rd generation or iPod Touch 5th generation – or any later iOS or hardware configuration. Will not work on iPhone 4, 3GS on 3G or any earlier iPad or iPod generation

Android: Android 4.2 and higher. Works with most Android devices with Bluetooth Smart®, including Samsung Galaxy, Nexus 4, Motorola Droid, and other recent generation phones and tablets.

Getting Data Logs off iOS Device:

There are two ways to Export data off your smartphone / tablet device:

Directly from the Stats Page or
Manage Logging from the Manage page

Exported in Comma Separated file, or .CSV file which is easily imported into an Excel type program.

You would then Export to a valid email address or using AirDrop.

DROP D3FW Data Points: 6220

Logging every 2 seconds: Fills up after 3.4 hours
Logging every 10 minutes - Fills up after 43.2 days
Logging every 2 hours - Fills up after 259 days

Battery Life:

The battery life will vary based on usage.
For baseline conditions and settings*, the battery will last approximately 6 months. *Temp = 75°F, Logging Rate = 10 Minutes, Update Rate = 30 seconds.
Battery life will be reduced by:
- Colder conditions
- More frequent logging or update rates
Downloads of large data logs (or firmware updates) are best completed with a fresh battery and in temperatures above 10°C / 50°F.

Color Available:

Orange

Applications:

Getting Started: Kestrel Drop

DROP FUNCTIONS:

Kestrel Meter Heat Index Reference Guide

Download Heat Index Reference Guide - Download Now (PDF)

Download The Free Kestrel Connect APP

Requires iOS 6 installed iPhone 4s, iPAD 3rd Generation or iPOD Touch 5th generation - or any later iOS or hardware configuration.
Will NOT work on iPhone 4, 3GS on 3G or any earlier iPAD or iPOD generation.
Android App expected in early 2016

Kestrel Fire Weather DROP Additional Information

- Weight is 1.2 oz / 34 grams
- Size is 2.4 x 1.8 x 0.9 inches / 6 x 4.5 x 2.3 cm
- Part # 0730FWORA
- Kestrel Meters Detailed Specs / Certificate of Conformity(All Meters, PDF)
- Kestrel Meters Catalog (PDF)
- RoHS CERTIFICATE of Compliance
- Dimensions:
- Weight: 2.3 Ounces / 65 Grams
- Model: Kestrel Fire Weather DROP Part # 0730FWORA
- Place of Origin: USA
